Crossed Roller Bearings – The Invisible Backbone of Precision Equipment

In the world of high-end equipment manufacturing, crossed roller bearings play a quietly critical role. Although compact in size, they bear the rotational accuracy and rigidity of the entire device. They are the “invisible backbone” of precision equipment, from industrial robot joints to five-axis machining center rotary tables and DD motors.

What Makes Crossed Roller Bearings Special?

The core innovation lies in the arrangement of the rollers—two sets of raceways with cylindrical rollers arranged orthogonally between inner and outer rings, with adjacent rollers oriented oppositely and separated by spacers. This unique design delivers three decisive advantages:

One Bearing, Multiple Load Directions: Traditional bearings typically bear loads mainly in one direction. Crossed roller bearings can simultaneously bear radial loads, axial loads, and overturning moment loads, simplifying equipment structure by replacing multiple bearings with just one.

High Rigidity, Compact Design: Crossed roller bearings achieve superior rigidity in a much thinner cross-section compared to double-row angular contact ball bearings. When preload is applied, rotational accuracy reaches micron levels.

Exceptional Rotational Accuracy: In demanding applications, these bearings can control radial and axial runout within 2–3 microns, significantly improving positioning precision.

Key Applications and Market Outlook

Today, crossed roller bearings are indispensable in:

Industrial robot joints (waists, shoulders, elbows, and harmonic reducer outputs)

CNC rotary tables (four-axis and five-axis machining centers)

DD motors and direct drive motors

Semiconductor manufacturing equipment

Medical imaging systems and surgical robotics

The global crossed roller bearings market was valued at approximately $1.6 billion in 2024 and is projected to reach $4.6 billion by 2035, growing at a CAGR of 10.2%. Robots and automation applications account for nearly 42% of demand, while machine tools contribute approximately 36%. The adoption rate of high-precision bearings has already exceeded 54%.

Ouna Bearing’s Crossed Roller Bearing Portfolio

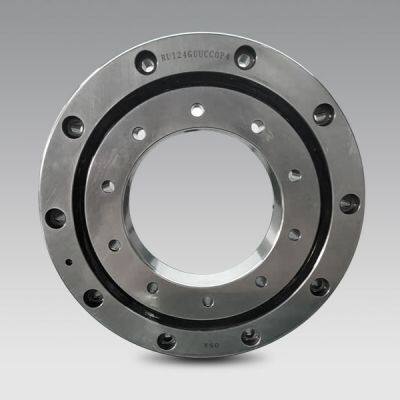

Luoyang Ouna Bearing offers the full spectrum: ORA, ORB, ORE, ORU, ORAU, ORBH, OSX, OXSU, OXU, ORBS series, plus crossed tapered roller bearings JXR and XR series. Precision grades reach P5, P4, and P2, with outer diameters from φ20mm to φ2500mm. We also develop custom sizes and preload specifications according to your drawings.

If your application demands the highest levels of rigidity and accuracy in a compact form factor, crossed roller bearings are the answer—and Ouna Bearing is the source.
